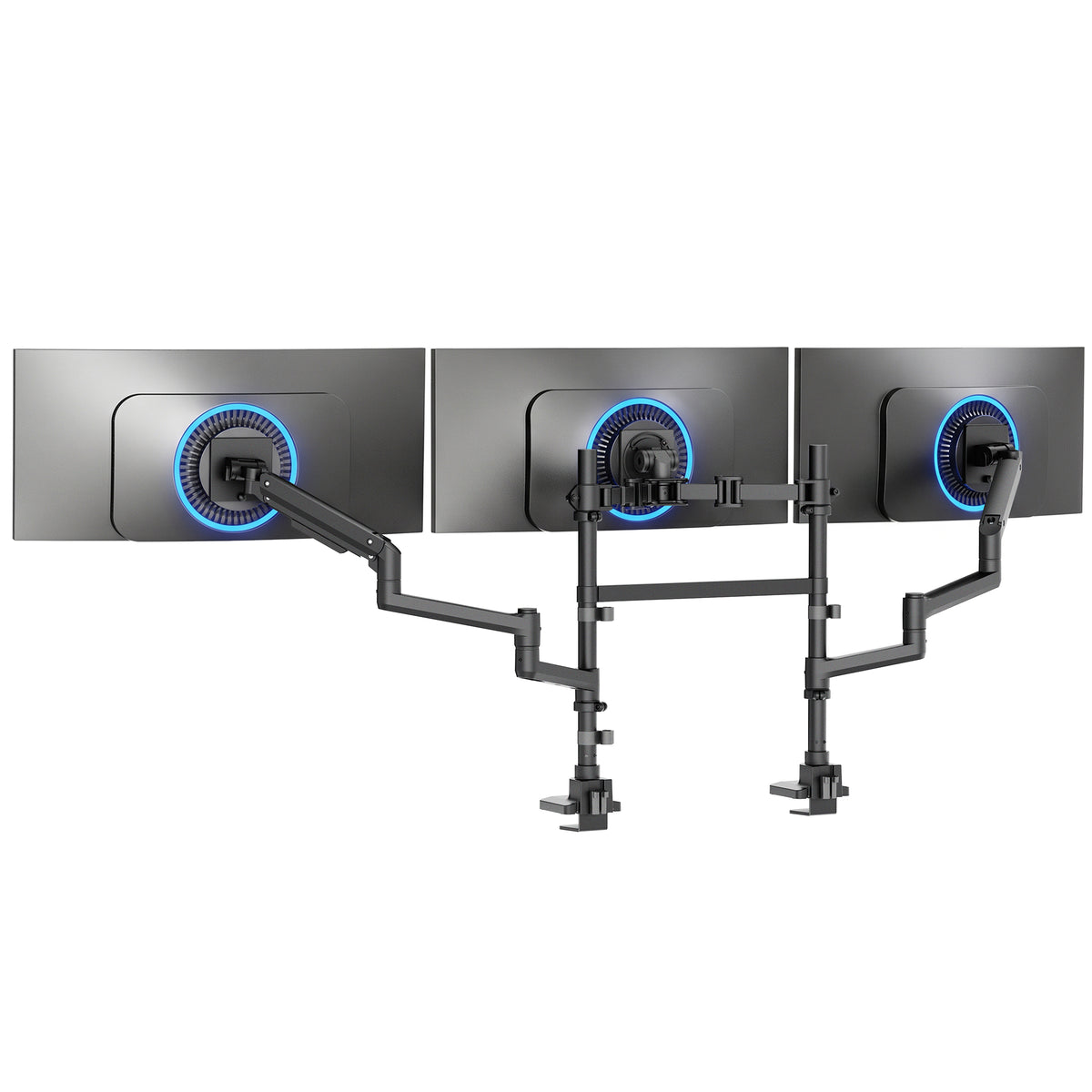

2-Pole Pneumatic Arm Triple Ultrawide Monitor Desk Mount - Up to 49" Screens

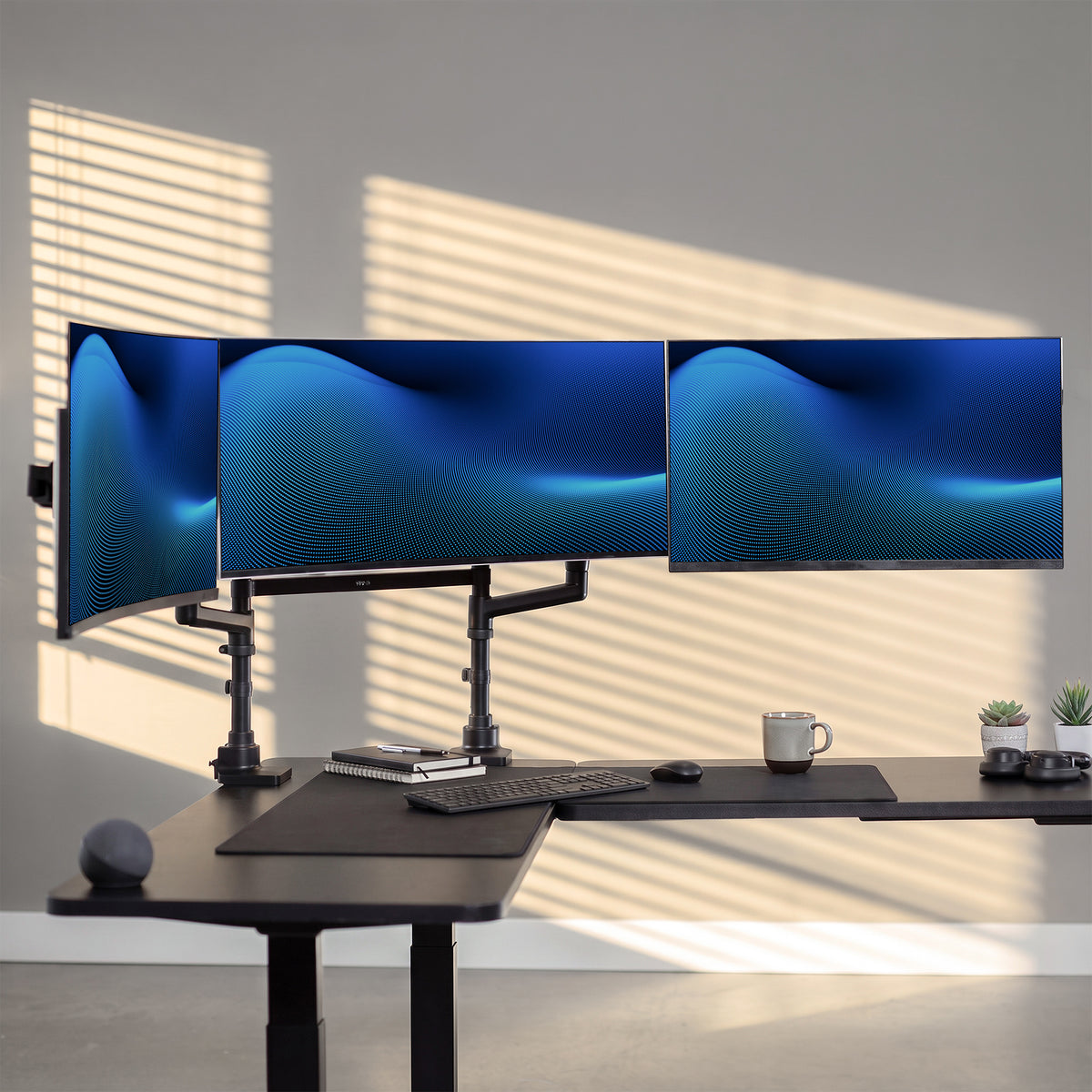

Reclaim your desk space and upgrade your workstation with the VIVO Pneumatic Triple Ultrawide Monitor Desk Mount, a 2-pole triple monitor stand built to display a 49” ultrawide screen on the center bracket alongside two 38” monitors on the side arms. This stand supports a portrait and horizontal configuration. Two powerful pneumatic arms counterbalance up to 26.4 lbs each, letting you raise or lower your side screens at the touch of a hand. The center bracket holds up to 59.4 lbs for flat screens, or 48.4 lbs for curved displays. With +55° to -25° tilt, 360° swivel, and 360° rotation on every bracket, you can keep screen glare down and viewing angles comfortable. The low profile, 2-pole frame pushes your monitors back close to the wall, freeing up real desk space, while heavy duty C-clamps or grommet mounting fit desktops from 0.4 to 1.7 inches thick. Detachable VESA plates from 75x75 up to 200x200mm and integrated cable clips along the poles keep setup and cable management simple, and all hardware is included for smooth assembly.

• Screen Sizes (centered ultrawide configuration): Up to 49” Ultrawides (Center) (x1), Up to 38” Ultrawides (Sides - Portrait) (x2)
• Screen Sizes (1+2 configuration): Up to 49” Ultrawides (Bottom) (x1), Up to 34” Ultrawides (Top - Landscape) (x2)
• Screen Types: Flat and Curved
• VESA Standard: 75x75mm, 100x100mm, 200x100mm, 100x200mm, 200x200mm
• Center Bracket Minimum Screen Size: 27”
• C-clamp Mounting Compatibility: Straight or corner desktops
• Compatible Desktop Thickness: 0.4” to 1.7” (clamp), 0.4" to 1.5" (grommet)
• Center Arm Flat Screen Weight Capacity: 59.4 lbs
• Center Arm Curved Screen Weight Capacity: 48.4 lbs
• Pneumatic Side Arm Weight Capacity: 26.4 lbs

• Material: Aluminum, Steel, Plastic
• Pole Height: 26.5” (x2)
• Center Bracket Maximum Screen Height: 23”
• Side Bracket Maximum Screen Height: 41.8” (each)
• Center Screen Maximum Extension: 9.5”
• Side Screen Maximum Extension: 33.8” (per screen)
• Arm Span: 77.3”
• Side Bracket Articulation: +55° to -25° tilt, 360° swivel, 360° rotation (per bracket)
• Center Bracket Articulation: +55° to -25° tilt, +35° to -35° swivel, 360° rotation
• Height Adjustment: 22”
• Mounting Options: C-clamp or grommet
• Base Dimensions: 24.8” x 4.3”
• VESA Plate Dimensions: 4.5” x 4.5” (x3)
• Pole Diameter: 1.4” (per pole)
• Total Product Height Above Desktop: 43.4”
• Total Product Dimensions: 84.3” x 4.3” x 44”
• Screen Orientation: Portrait or Landscape

• Assembly Manual PDF
