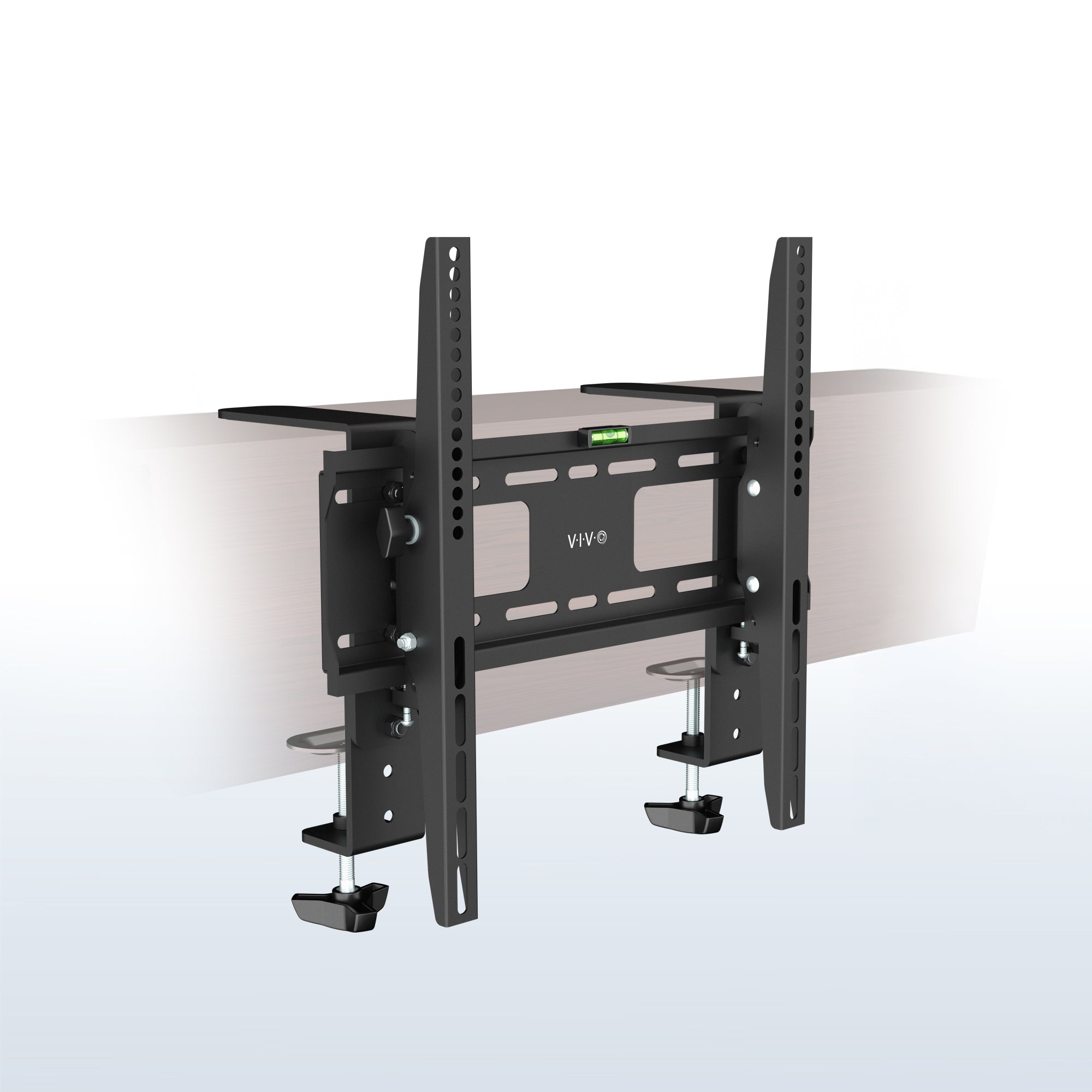

Mantel TV Mount for 32" to 50" TVs

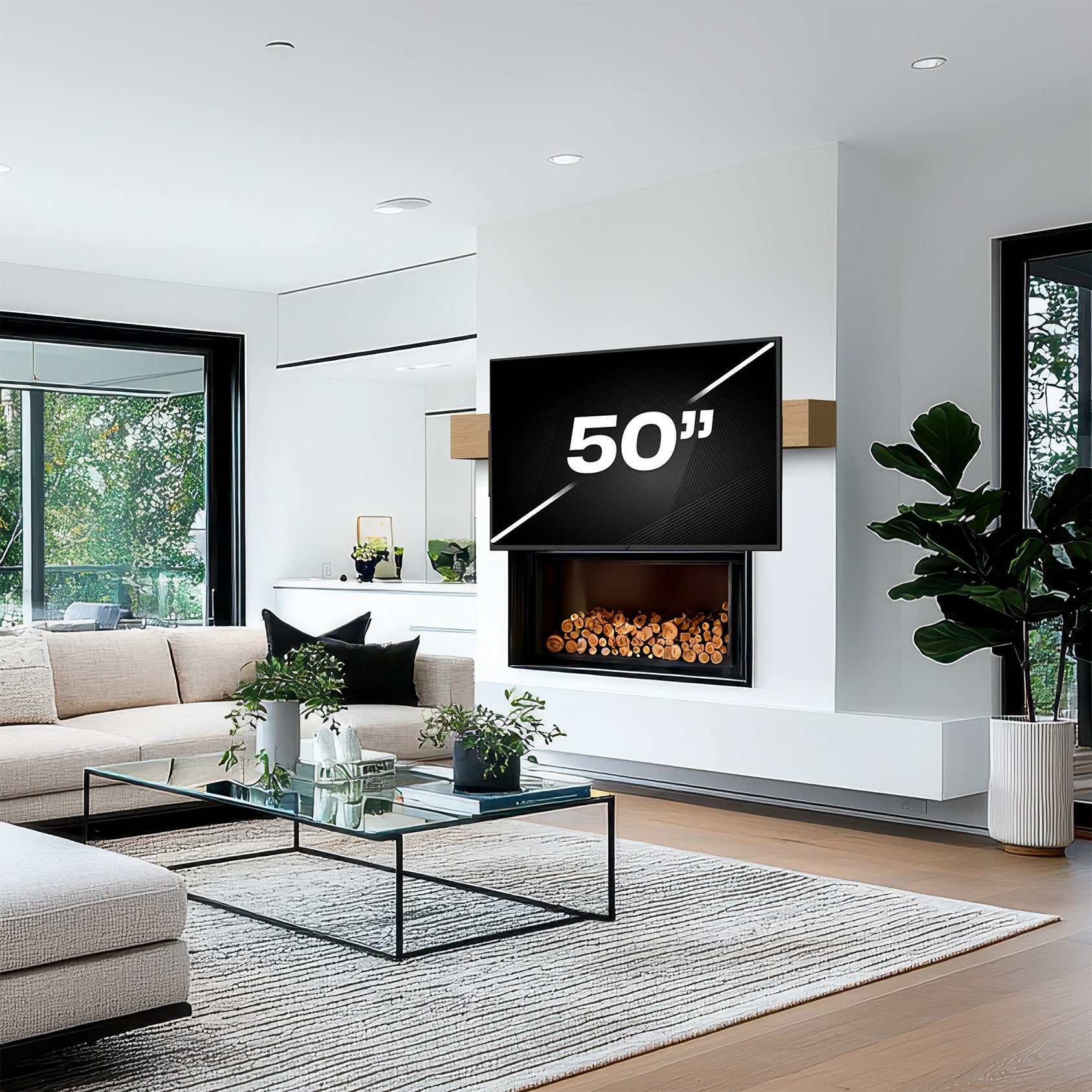

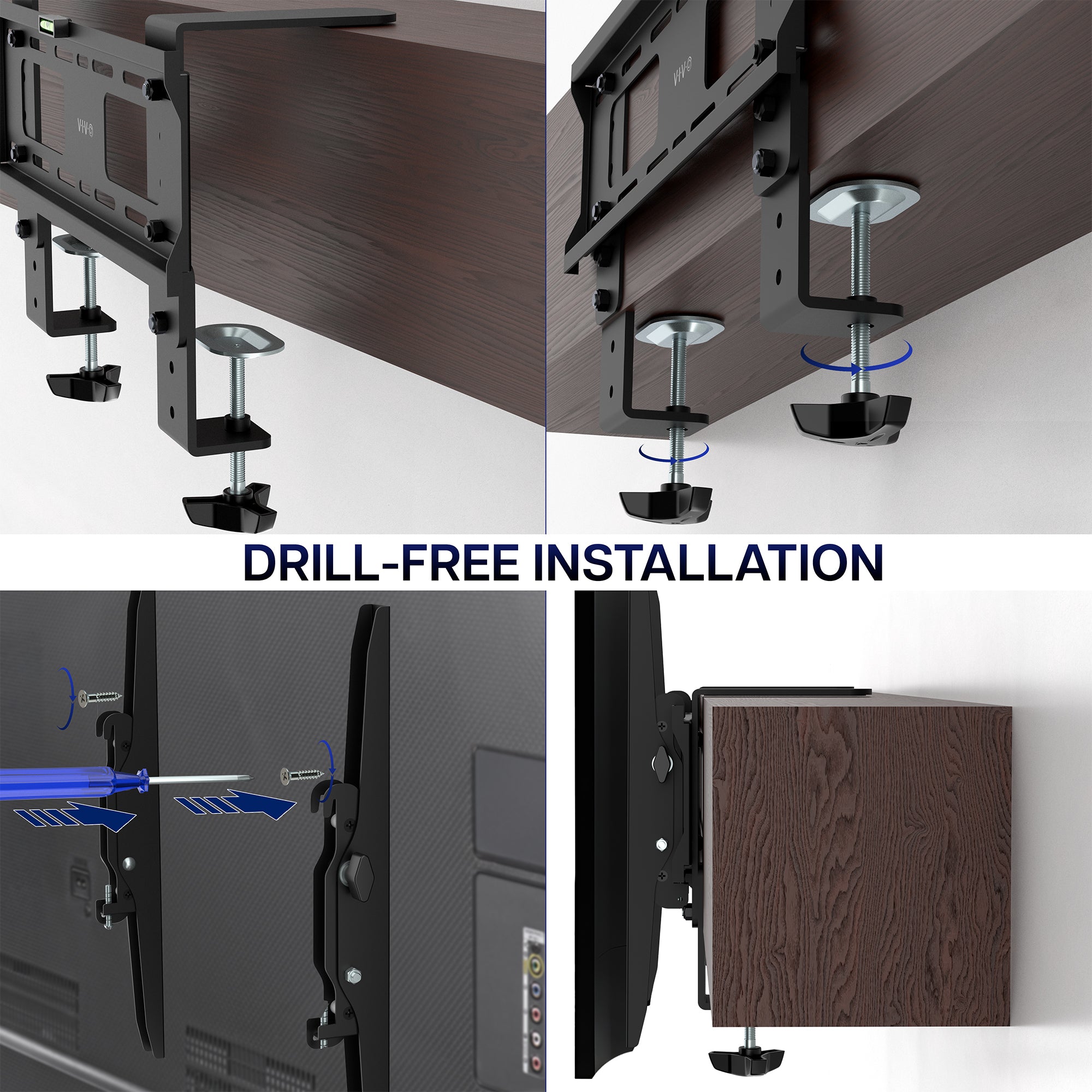

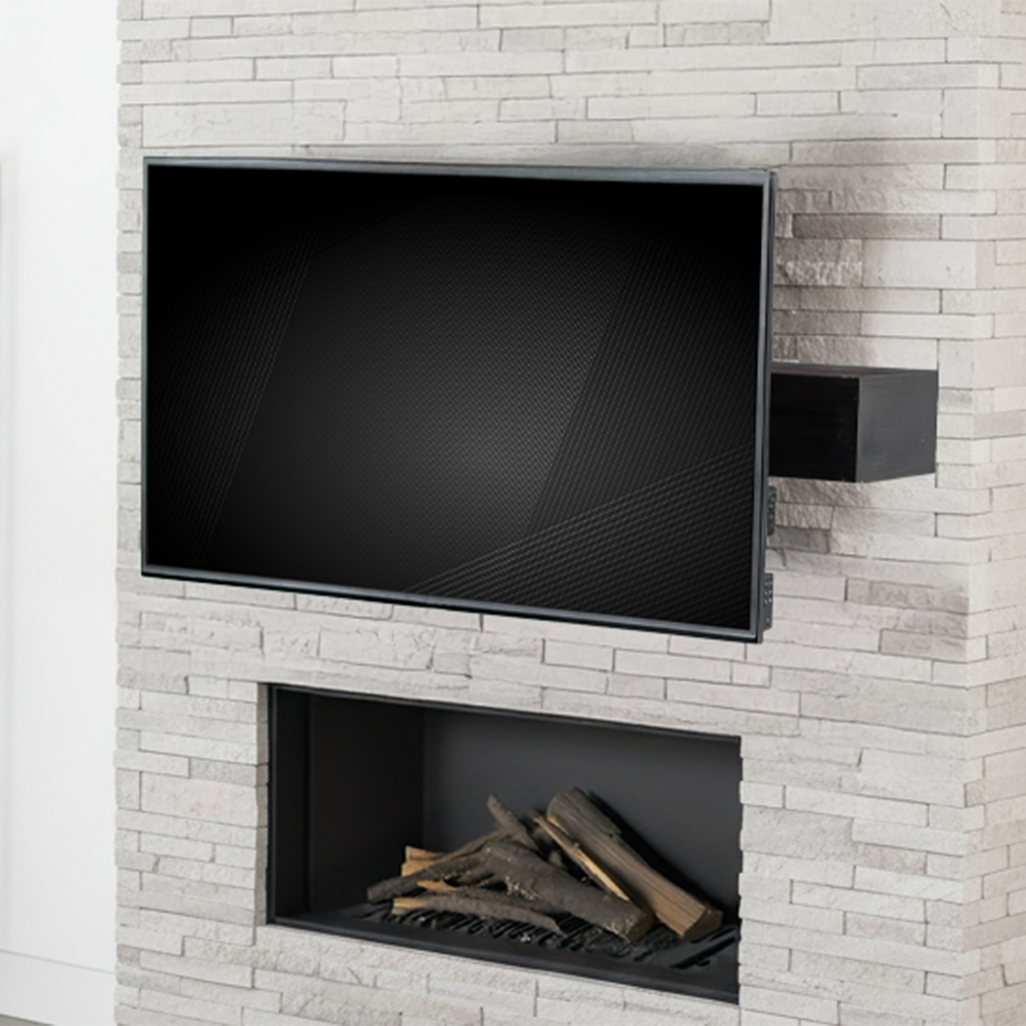

Enhance your viewing experience without drilling into the wall with the Mantel TV Mount (MOUNT-M50C) from VIVO! This clamp-on mount offers a sturdy, drill-free solution for installing your TV directly above your fireplace. Perfect for more temporary solutions like apartments, renting situations, or anyone looking for a clean setup without permanent installation. Reinforced steel design holds 32" to 50" screens weighing up to 44 lbs, and protective padding keeps your mantel in pristine condition.

• Screen Size: 32” to 50”
• VESA Standard: 100x100mm, 200x100mm, 100x200mm, 200x200mm, 300x200mm, 300x300mm, 400x300mm, 400x400mm

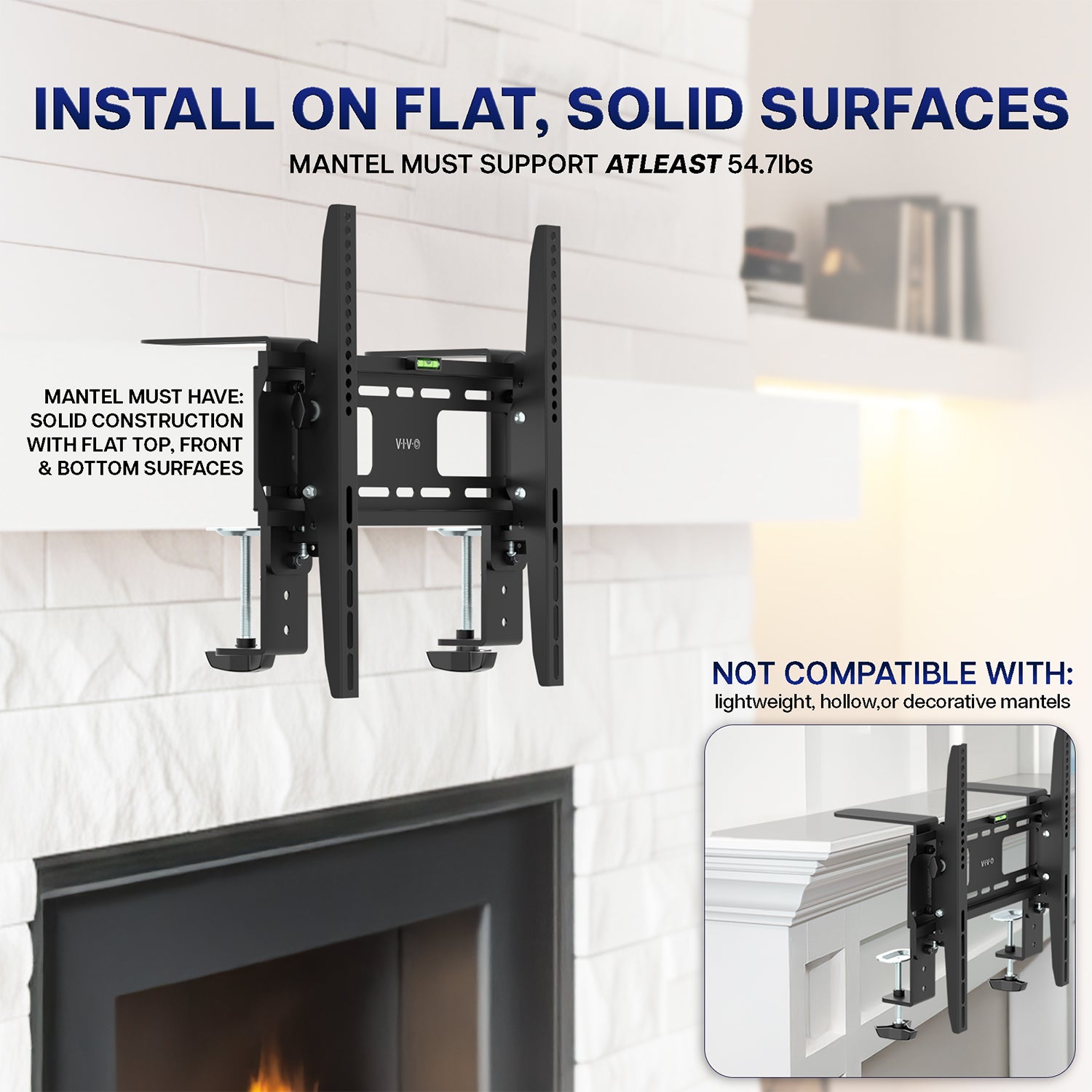

• Mantel Type: Must have solid construction (wood, masonry, etc), flat top, front, and bottom surfaces with no decorative obstructions, and load rated to support at least 54.73 lbs
• Do Not Install On: Hollow Mantels, Lightweight Decorative Mantels, Mantels made from Foam, Plastic, Particleboard, or similar materials
• Compatible Mantel Thickness: 1.96” to 9.65”
• Security Strap Installation: Concrete Wall, Wood Wall
• Weight Capacity: 44 lbs
• Total Weight on Mantel: Up to 54.73 lbs (weight capacity + item weight)

• Material: Steel

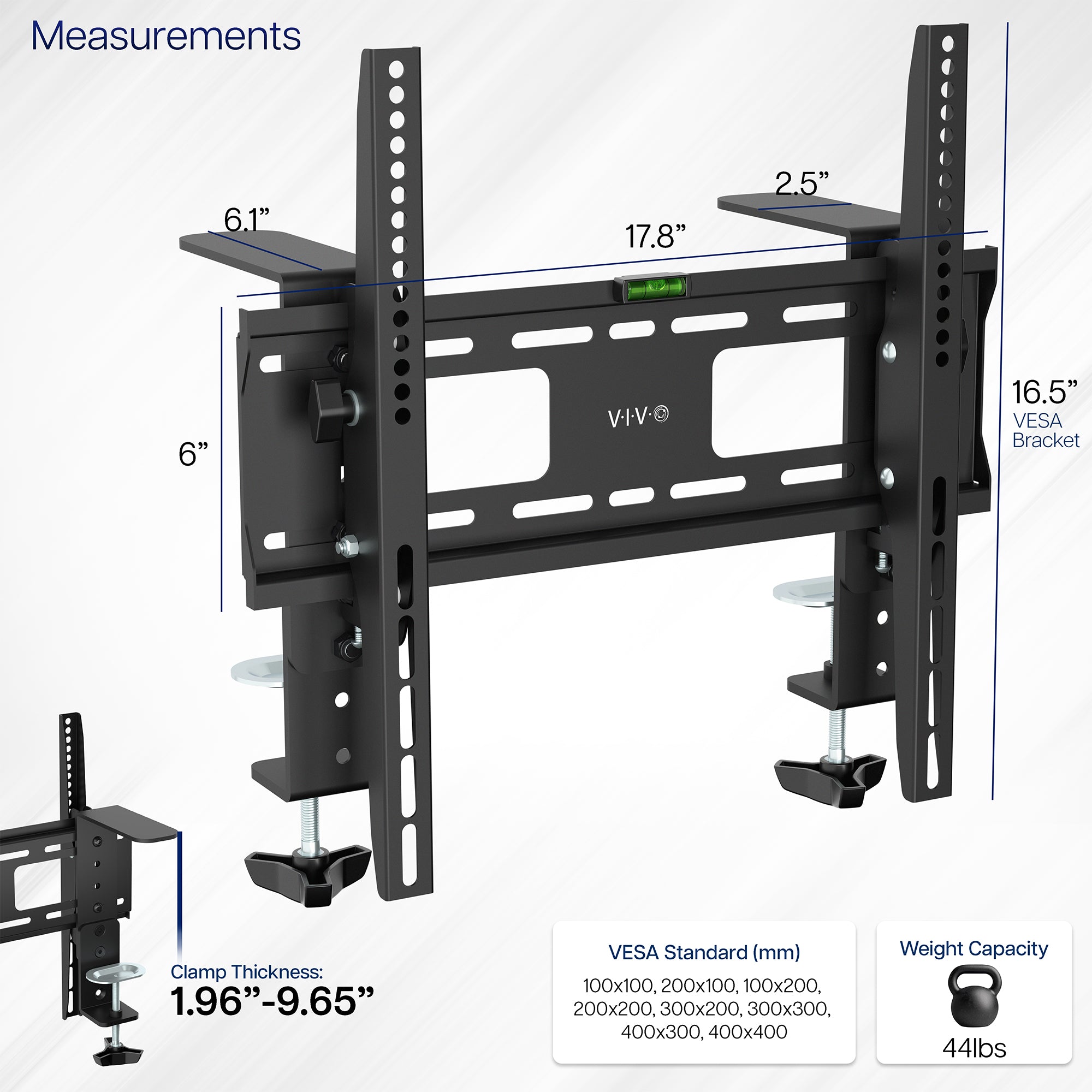

• Wall Bracket Dimensions: 17.8” x 6” x 0.8”
• VESA Bracket Dimensions: 16.5” x 1”

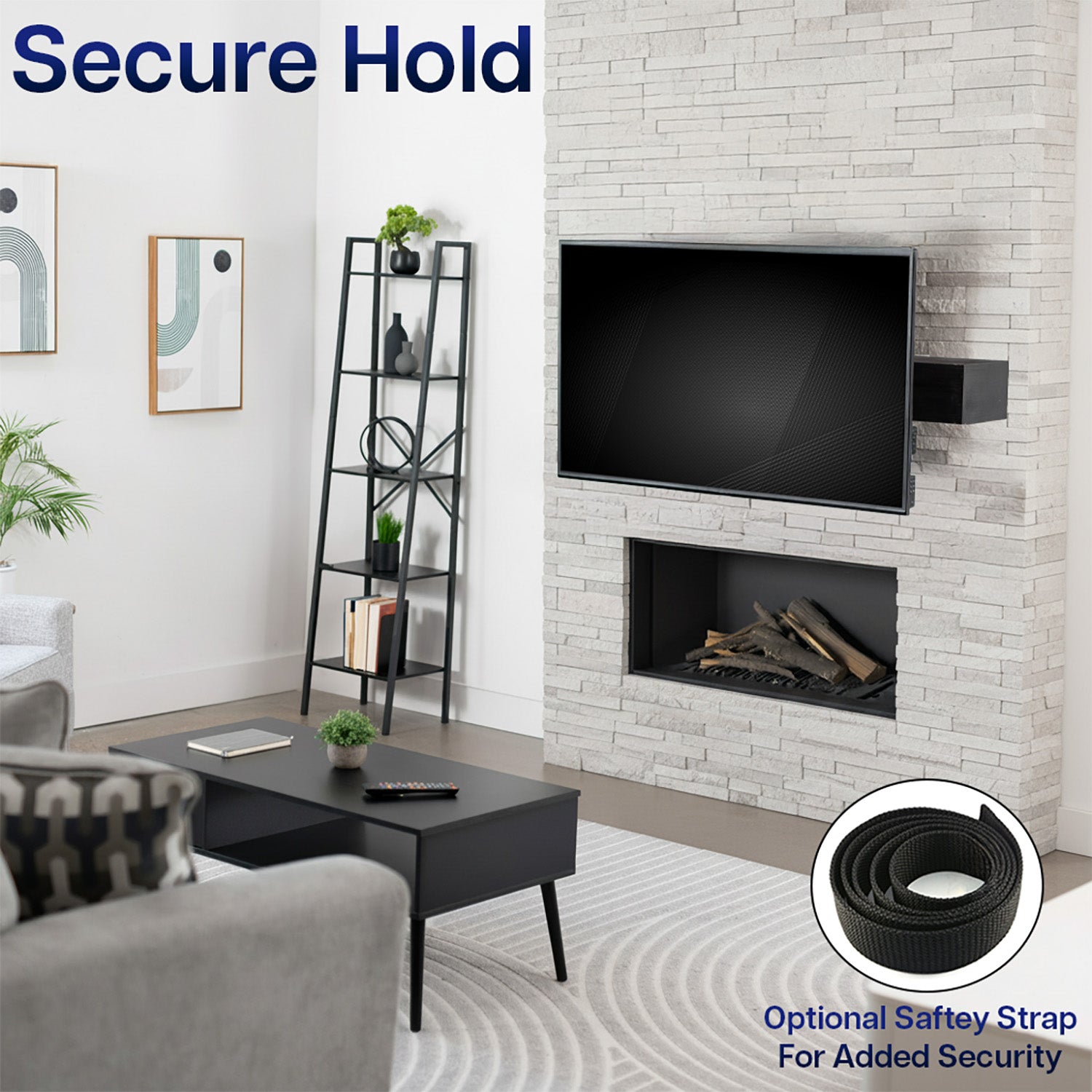

• Security Strap Length: 38” (3.2 ft)

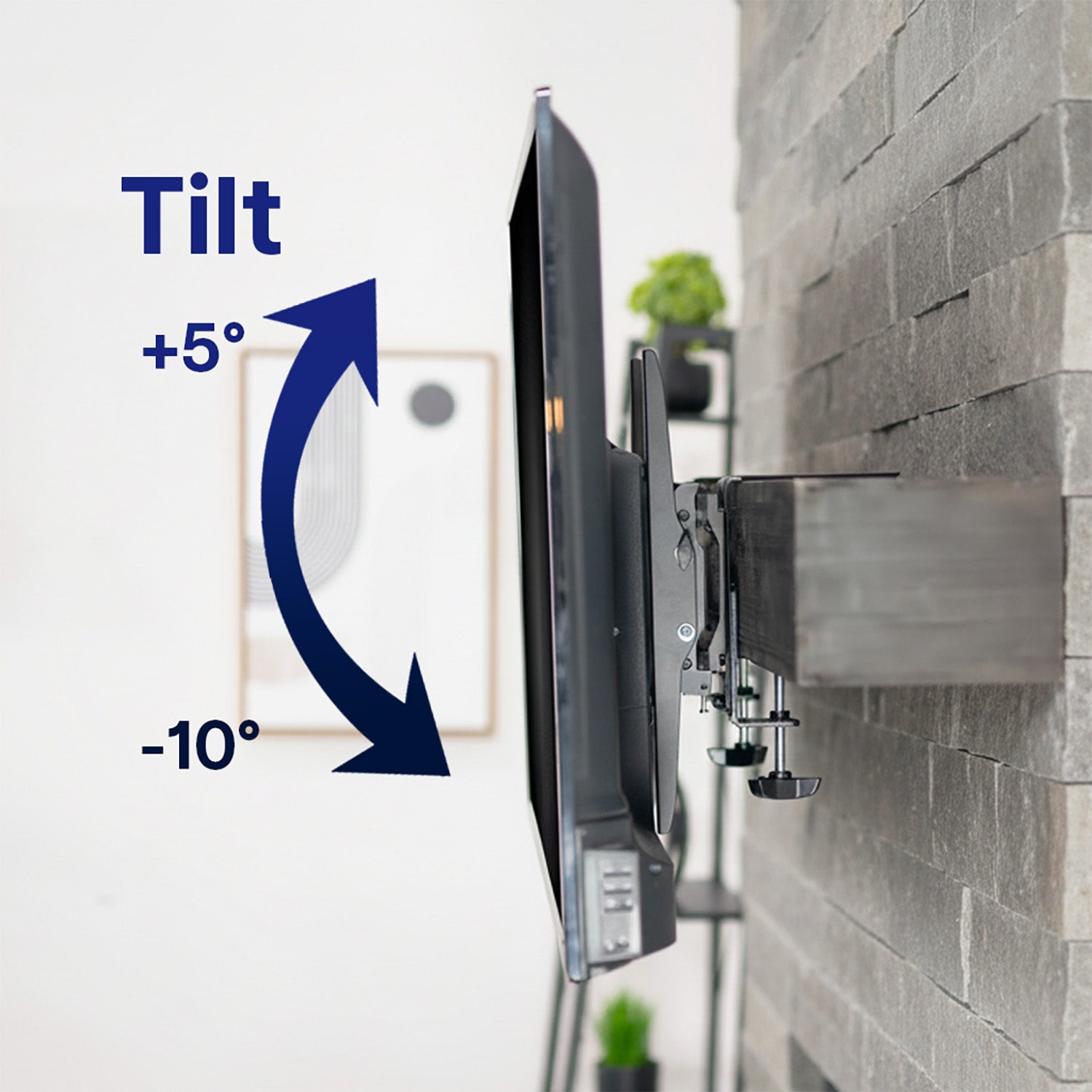

• Tilt: +5° to -10°
• Total Product Dimensions: 17.8” x 8.5” x 16.5”
• Clamp Dimensions: 2.5” x 6.1”
• Item Weight: 10.7 lbs

• Assembly Manual PDF
